Description
Designed to get a reasonably priced Hearing Aid with best ergonomic and acoustical qualities, the RONDO uses very few components installed in a simple and rugged construction. This means not only a low production price, but also the feasibility of the huge quantities potentially required to satisfy the world needs. The sophistication of the main competitors manufacturing digital Hearing Aids leads to no-competitive prices and restricted producible quantities, so that only a few % of hearing impaired people are equipped! (statistics available).


Ergonomics and physical appearance (look)
The RONDO is rather large: this is a necessity, either for ease of handling (children, old and/or clumsy people, etc.) and for best sound quality.

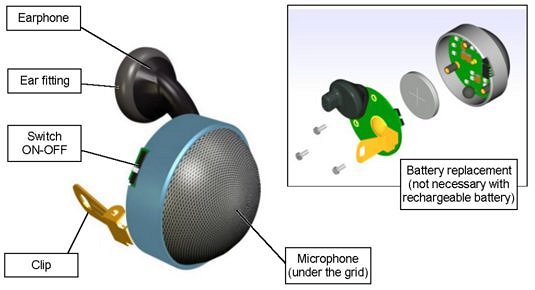

This size allows also an adequate built-in battery or an original rechargeable accumulator, for lowest costs and ecological maintenance.
Size and look will be studied, according to the fashion.


...

Sound Quality
Nobody can get away from the physical laws of the acoustics, and tiny speakers like those commonly used inside the current digital H.-A. are not able at all to produce the Hi-Fi sound of the RONDO-hearer: thanks to its low distortion and broad frequency range, which covers 9 musical octaves.


Similarly for the RONDO microphone, with its exceptional directional characteristic, resolving quasi perfectly the hearing problems in a noisy environment.

The unique compressor-limiter (drift away from Stellavox professional products and enjoying a very long experience in audio recording ) is a special electronic circuit installed inside the RONDO circuit board. It controls the sound level for best audible comfort, and particularly even the very short sound peaks, which are utmost disagreeable.

Specifications:

Size (without hearer) : dia 32 mm x 20 mm (dia 1,25 inch x 0.8 inch)
Weight (with battery) : 15 g (0.5 oz)
El. Frequency Range : 20 Hz - 20 kHz +/- 2 dB (without corrections)
Acoustical F-Range : 40 Hz - 12 kHz +/- 5 dB (without corrections)
Electrical Supply : 1 Lithium Button Battery size dia 20 x 3,2 mm
Type : CR2032 or equivalent / 230 mAh, 3 V
or : ML2032, compatible, rechargeable, 65 mAh
Life of the Battery : many years when not in use: no self-discharge
Power Drain : approx 1 mA per " RONDO "
Supply Voltage Range : 4 to 2 V=, for stable (+/- 0,5 dB) general gain
Trimmer Gain Control : adjustable from -6 to + 6dB (nominal = 0 dB)

Comparative:

    RONDO compared with main other H. A. available:

Item Competitor RONDO
ERGONOMICS
Battery: special, expensive standard, inexpensive
Rechargeable Battery: not available! standard
Annual Cost: approx. US$ 150 approx. US$ 60
(less with rechargeable battery)
Solar Power: not available built in (case holds 2 RONDOs)
How to put on: laborious fast and easy
Maintenance: fastidious cleaning none
Handling: tedious no control to adjust
Comfort: occlusion noise when eating excellent
Sturdiness: fragile robust
Moulding Necessity: to individual ears no need
ELECTRONIC PERFORMANCES
Correction of Spectrum: not accurate very accurate
Limiter-compressor: distortions audiologically correct
Gain: depends on battery level stable
Slope of Amplification: fixed adaptable
Battery Charger: not available optional
Accidental Switch-on: possible impossible
Technical Maintenance: difficult easy
ACOUSTIC PERFORMANCES
Music Rendering: restricted sound natural sound
Microphone: limited performance studio quality
Speaker: low performance studio quality
Larsen Effect: occasional on rare occasions
Directivity: pseudo-card´oide true card´oide
Understanding in Presence of Ambient Noise: poor good
Noise from Wind: high low

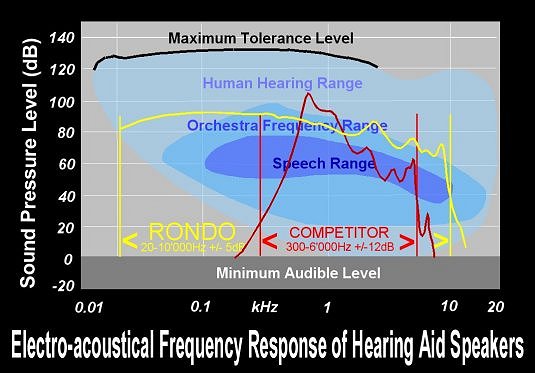

Frequency Response: restricted with peaks extended, flat
Input-Output Fidelity: poor good
Direct Hearing: reduced unobstructed
Audiogram Transfer: indirect direct
